readID™ Wall E

SE 1090

Outdoor Card Reader for MIFARE® DESFire® with PINPad

Functional description:

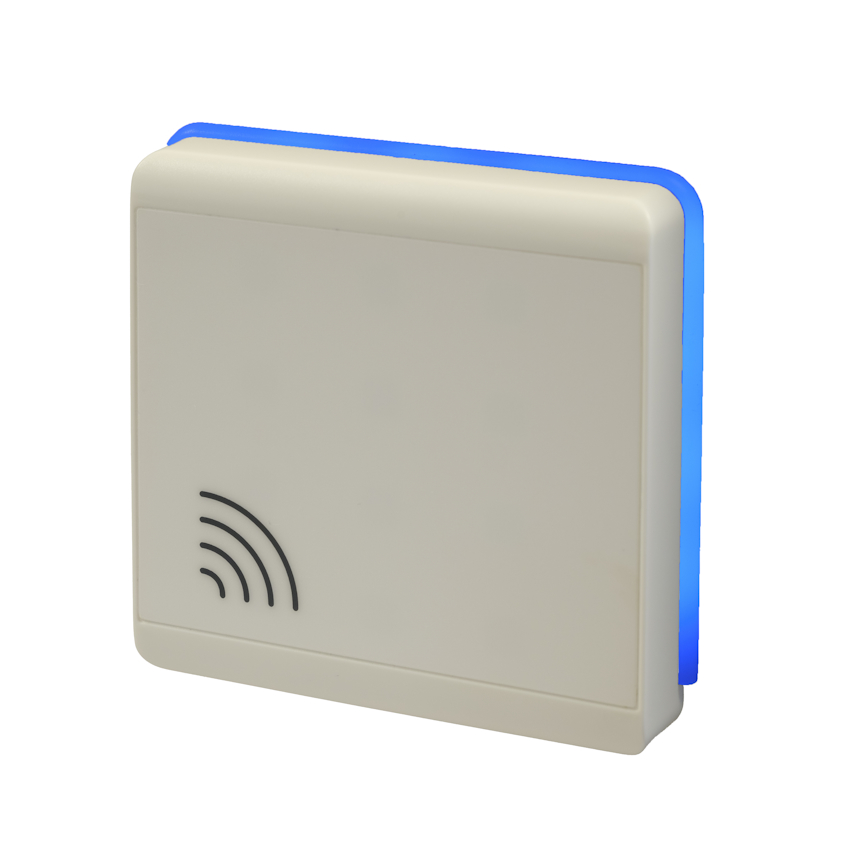

The readID™ Wall E series is a wall mounted card reader for both in- and outdoor use.
The card reader is a 13,56 MHz ISO14443A based solution for reading of MIFARE® Classic, MIFARE® Ultralight and MIFARE® DESFire® family of cards and tags.

Function list:
   • MIFARE Classic® (UID / Sector)
   • MIFARE Ultralight® (UID)
   • MIFARE® DESFire EV1 / EV2 / EV3 (UID / Application-AES)
   • Supports both READ and WRITE functions
   • EMV® Virtual card number
   • PIN Pad with back light
   • Tamper monitoring
   • Day light sensor
   • Interface:
        • Wiegand
        • Clock / Data
        • RS485 / OSDP™
