readID™ Wall S

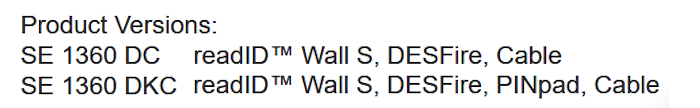

SE 1360


Outdoor Card Reader for MIFARE® DESFire® with PINPad


Functional description:
The readID™ Wall E series is a wall mounted card reader for both in- and outdoor use.
The card reader is a 13,56 MHz ISO14443A based solution for reading of MIFARE® Classic, MIFARE® Ultralight and MIFARE® DESFire® family of cards and tags.


Function list:
   • MIFARE Classic® (UID / Sector)
   • MIFARE Ultralight® (UID)
   • MIFARE® DESFire EV1 / EV2 / EV3 (UID / Application-AES)
   • Supports both READ and WRITE functions
   • EMV® Virtual card number
   • PIN Pad with back light
   • Tamper monitoring
   • Day light sensor
   • Interface:
      • Wiegand
      • Clock / Data
      • RS485 / OSDP™
